Automatic correction and balancing device of the ribbon web

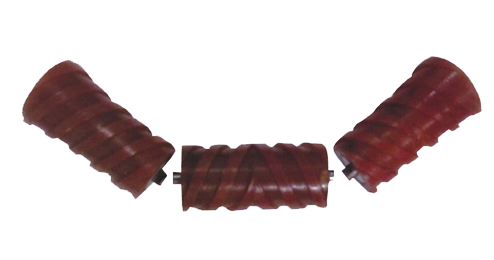

This product uses conical screw rollers on both sides, rotating in different directions. When the conveyor is running, both side rollers give the conveyor a horizontal force directed towards the center. In the case of displacement, the conveyor moves to the side, being subjected to pressure created by the angle of the screw. The further away from the center, the greater this pressure, which helps to return the conveyor to the center and ensures normal operation.
Download the table of components
consult
Equipment Features
The design with ring structures provides correction and prevention of displacement of the conveyor during operation
The design with transverse grooves avoids sticking of materials and promotes drainage during operation
The profile with curvature ensures full compliance with the conveyor, increasing the contact area for effective correction
Machining on a CNC machine provides high coaxiality, which eliminates floating vibrations and noise during operation
It has a self-cleaning function
Does not require special installation for correction, provides convenience in installation and maintenance
The completed triple sealing design ensures zero permeability and long service life
The profile with curvature ensures full compliance with the conveyor, increasing the contact area for effective correction
High-performance surface coating ensures a long service life with minimal wear of the conveyor
Technical specifications
consult
-50°C~80°C
10-15 кn
0.08±0.02 mm, excellent wear resistance
520 kgc/cm, excellent flexibility
600%, high elasticity
80A, less conveyor hardness (90A), does not damage the conveyor
pH4-10
Technical specifications
Axial load
Acrolon Wear
Tensile strength
Lengthening
Shore Hardness
60%-70%
140 kN/m, excellent tear resistance
Chemical resistance
Relative humidity
Tear strength at tearing
